【ANSI】DN65美標橡膠避震喉“美國標�(zhǔn)�
DN65 American rubber shock absorber "American Standard"
上海淞江減震器集�(tuán)有限公司官方�(wǎng)站為您介紹：【ANSI】DN65美標橡膠避震喉“美國標�(zhǔn)”信息，淞江集團為眾多客戶提供美洲標�(zhǔn)橡膠接頭�(chǎn)品，主要采用美標150LB法蘭�(biāo)�(zhǔn)，橡膠采用長�130mm�(biāo)�(zhǔn)，具有良好的減震和降噪效果�
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN65 U.S. Standard Rubber Shock Absorber Throat "U.S. Standard" information, Meijiang Group provides many customers with American Standard Rubber Joint Products, mainly using U.S. Standard 150LB flange standard, rubber using 130mm standard length, with good shock absorption and noise reduction effect. Fruit.

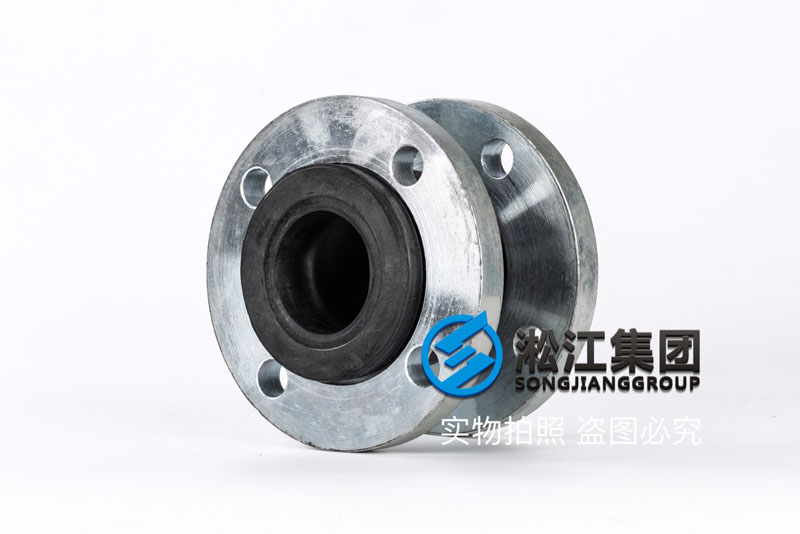

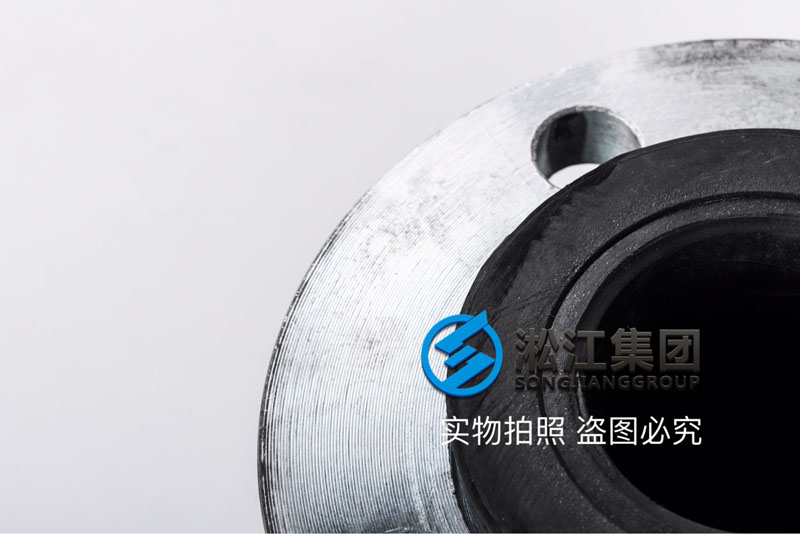

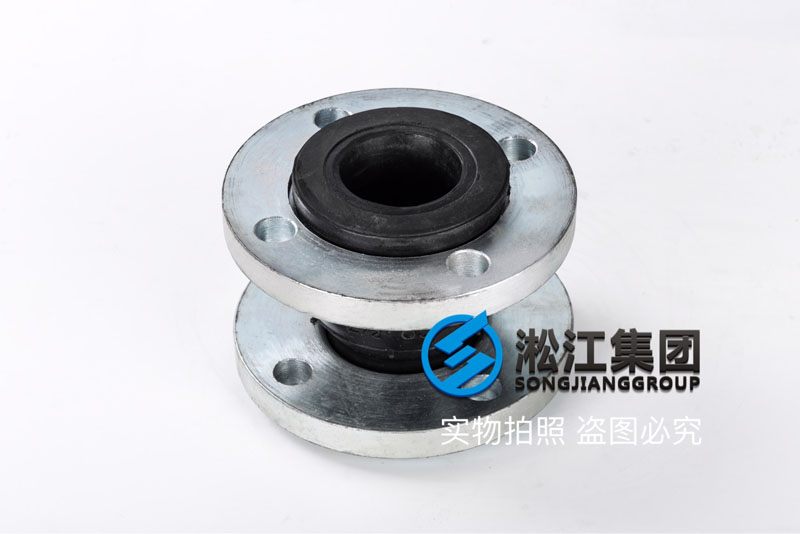

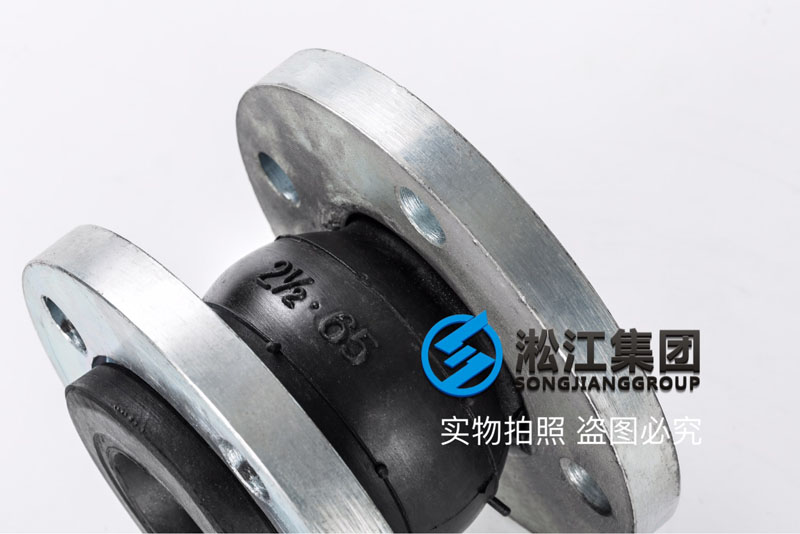

一、美國標�(zhǔn)橡膠避震喉實物拍照：
�、美國標�(zhǔn)橡膠避震喉基本信息：
名稱：美�(biāo)橡膠避震�
型號：ANSI-150LB
口徑：DN65�2 1/2寸）
�(zhì)保：3�
�(yōu)�(diǎn)：減�、降�、補償管道、可偏轉、可位移�
介質：海��120度以下弱酸堿�
生產廠家：上海淞江減震器集團有限公司
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN65 (2 1/2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數�
安裝長度�130mm�150mm�
軸向拉伸�6mm
軸向壓縮�10mm
橫向位移�12mm
偏轉角度�15°
橡膠：三元乙丙橡膠（淞江集團所有三元乙丙橡膠全部采用三�4045，含量在50%左右，有材質證明，有含量檢測�(bào)�，也有國家型式試�(yàn)中心的產品檢測報告和性能檢測�(bào)告等證書。）
Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數�
�(biāo)�(zhǔn)：ANSI-150LB
法蘭外徑�180mm
螺栓孔中心距�139.5mm
螺栓孔徑�18mm
螺栓孔數�
壓力�150LB（PN20�
法蘭：碳鋼（Q235�
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 180mm
Center distance of bolt hole: 139.5mm
Bolt diameter: 18mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
�、美國標�(zhǔn)橡膠避震喉發貨現場：
�、美國標�(zhǔn)橡膠避震�工廠介紹�
