【ANSI】DN50美標橡膠軟接頭“與化工部標�(zhǔn)一致�
DN50 American rubber soft joint "is consistent with the Ministry of chemical industry standards".
上海淞江減震器集�(tuán)有限公司官方�(wǎng)站為您介紹：【ANSI】DN50美標橡膠軟接頭“與化工部標�(zhǔn)一致”信息，淞江集團為眾多客戶提供美洲標�(zhǔn)橡膠軟接頭產品，主要采用美標150LB法蘭�(biāo)�(zhǔn)，橡膠采用長�130mm�(biāo)�(zhǔn)，具有良好的減震和降噪效果�
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN50 U.S. Standard Rubber Soft Joint "in accordance with the Ministry of Chemical Industry Standard" information, Meijiang Group provides many customers with American Standard Rubber Soft Joint Products, mainly using the U.S. Standard 150LB flange standard, rubber using the length of 130mm standard, with good damping. The effect of earthquake and noise reduction.

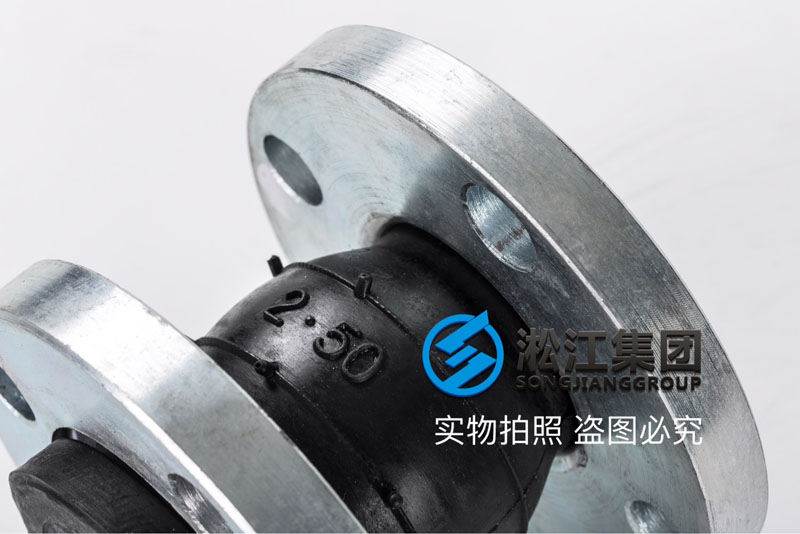

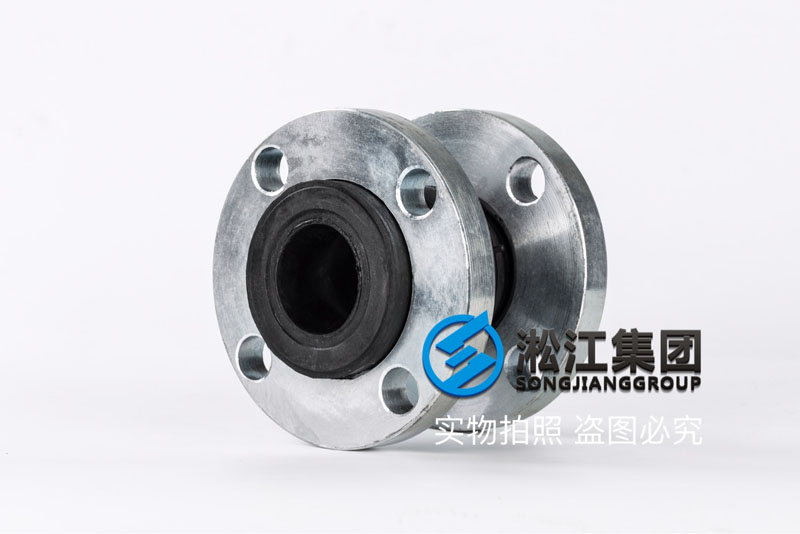

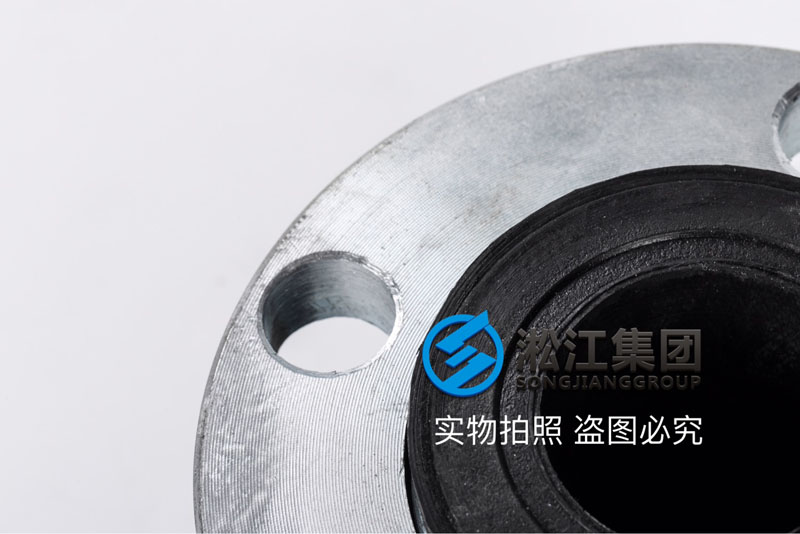

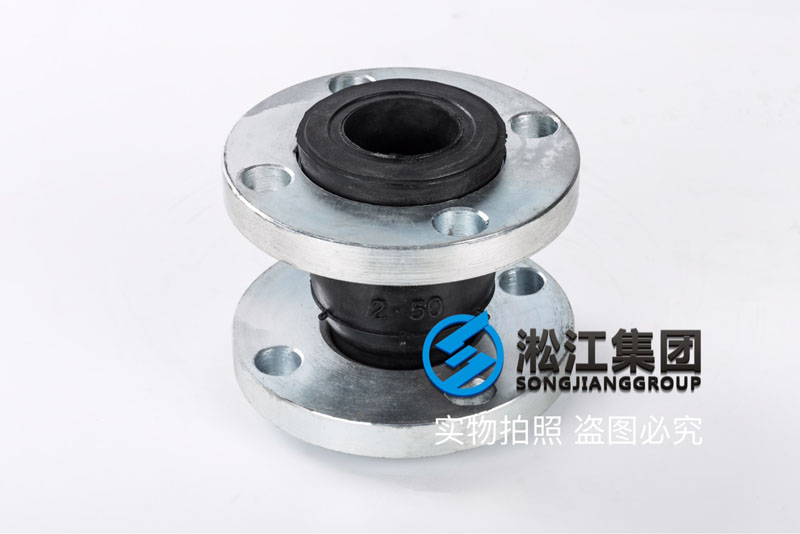

一、化工部�(biāo)�(zhǔn)橡膠軟接頭實物拍照：
二、化工部�(biāo)�(zhǔn)橡膠軟接頭基本信息：
名稱：美�(biāo)橡膠軟接�
型號：ANSI-150LB
口徑：DN50�2 寸）
�(zhì)保：3�
�(yōu)�(diǎn)：減震、降噪、補償管道、可偏轉、可位移�
介質：海水，120度以下弱酸堿�
生產廠家：上海淞江減震器集團有限公司
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN50 (2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數�
安裝�(zhǎng)度：130mm�150mm�
軸向拉伸�6mm
軸向壓縮�10mm
橫向位移�12mm
偏轉角度�16°
橡膠：三元乙丙橡膠（淞江集團所有三元乙丙橡膠全部采用三�4045，含量在50%左右，有材質證明，有含量檢測�(bào)告，也有�(guó)家型式試�(yàn)中心的產品檢�(cè)�(bào)告和性能檢測�(bào)告等證書。）
Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 16 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數�
�(biāo)�(zhǔn)：ANSI-150LB
法蘭外徑�150mm
螺栓孔中心距�120.5mm
螺栓孔徑�18mm
螺栓孔數�
壓力�150LB（PN20�
法蘭：碳鋼（Q235�
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 150mm
Center distance of bolt hole: 120.5mm
Bolt diameter: 18mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
三、化工部�(biāo)�(zhǔn)橡膠軟接頭發貨現�(chǎng)�
四、化工部�(biāo)�(zhǔn)橡膠軟接�工廠介紹�
