【ANSI】DN150美標橡膠防震接頭�150Lb美國標準�
DN150 American standard rubber shock joint "150Lb American Standard"
上海淞江減震器集團有限公�官方網站為您介紹：【ANSI】DN150美標橡膠防震接頭�150Lb美國標準”信�，淞江集團為眾多美洲客戶介紹美標150lb標準橡膠防震接頭產品，我廠擁有自己的自動化生產設備和疲勞檢測設備，歡迎實地參觀考察�
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN150 U.S. Standard Rubber Shock-proof Joints "150Lb U.S. Standard" information, Meijiang Group provides U.S. Standard Rubber Shock-proof Joints for many American customers, our factory has its own automatic production equipment and fatigue testing equipment, welcome on-site Visiting.

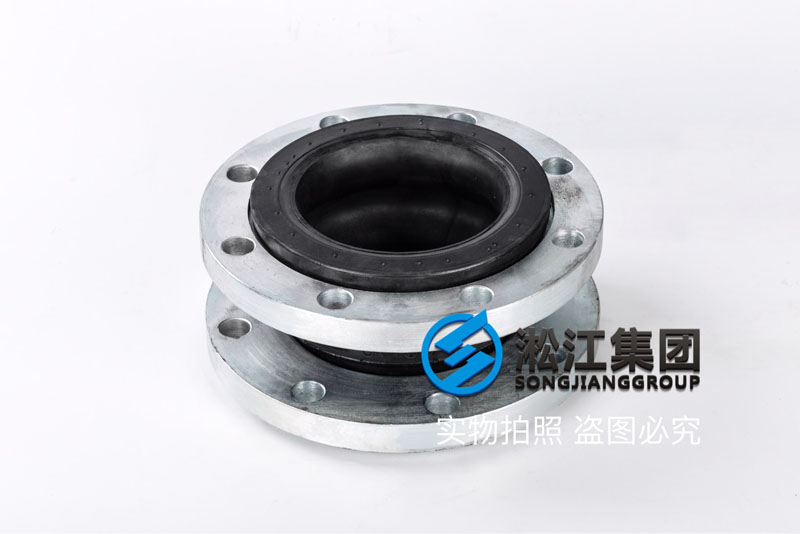

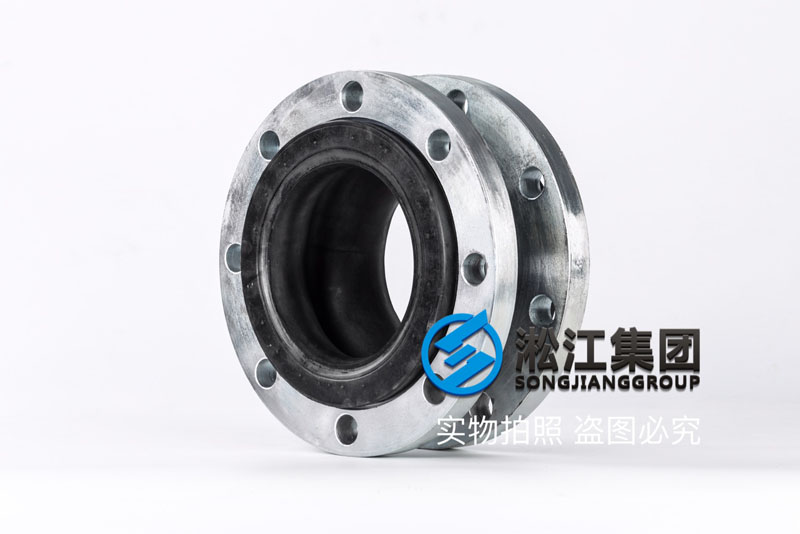

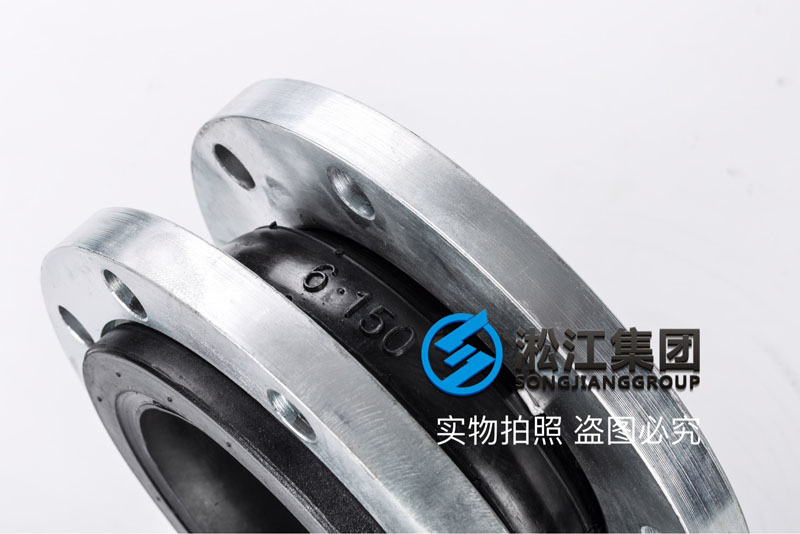

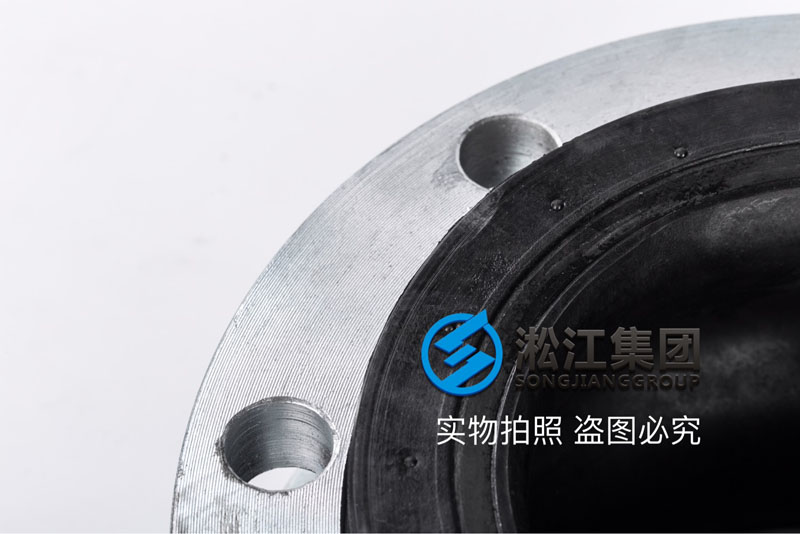

一�150lb美標橡膠防震接頭實物拍照�
二�150lb美標橡膠防震接頭介紹�
名稱：美標橡膠防震接�
型號：ANSI-150LB
口徑：DN150�6寸）
橡膠：三元乙丙橡膠（淞江集團所有三元乙丙橡膠全部采用日本三�4045，含量在50%左右，有材質證明，有含量檢測報告，也有國家型式試驗中心的產品檢測報告和性能檢測報告等證�。）
法蘭：碳鋼冷鍍鋅
優點：減震、降�、補償管�、可偏轉、可位移�
質保�3�
安裝長度�130mm�150mm�
軸向壓縮�10mm
軸向拉伸�6mm
橫向位移�12mm
偏轉角度�6°
標準：ANSI-150LB
法蘭外徑�280mm
螺栓孔中心距�241.5mm
螺栓孔徑�22mm
螺栓孔數�
壓力�150LB（PN20�
法蘭：碳鋼（Q235�
介質：海�、弱酸堿
生產廠家：上海淞江減震器集團有限公司
Name: single ball American standard rubber expansion joint
Model: ANSI-150LB
Caliber: DN150 (6 inches)
Rubber: Ethylene-propylene-diene rubber (all Ethylene-propylene-diene rubber of Meijiang Group adopts Japan Mitsui 4045, the content is about 50%, there is material proof, there is content testing report, there are also national type testing center product testing report and performance testing report certificate).
Flange: carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 10mm
Axial tension: 6mm
Lateral displacement: 12mm
Deflection angle: 6 degrees.
Standard: ANSI-150LB
Flange diameter: 280mm
Center distance of bolt hole: 241.5mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
Medium: seawater,
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
