【ANSI】DN125美標橡膠伸縮節“長�130mm�
DN125 American rubber expansion joint "length 130mm"
上海淞江減震器集�(tuán)有限公司官方�(wǎng)�橡膠接頭欄目為您介紹：【ANSI】DN125美標橡膠伸縮節“長�130mm”信息，淞江集團是一家生�(chǎn)各種橡膠接頭�(chǎn)品的廠家，擁有自己工廠的一套生�(chǎn)工藝流程和管理體系，確保�(chǎn)品質量做到有記錄，有依據，有檔案�
Shanghai Meijiang Shock Absorber Group Co., Ltd. Official Website Rubber Joint Column for you to introduce: [ANSI] DN125 U.S. standard rubber expansion joint "length 130mm" information, Meijiang Group is a manufacturer of various rubber joint products, has its own factory production process and management system to ensure that product quality is achieved. Records, evidence and archives.

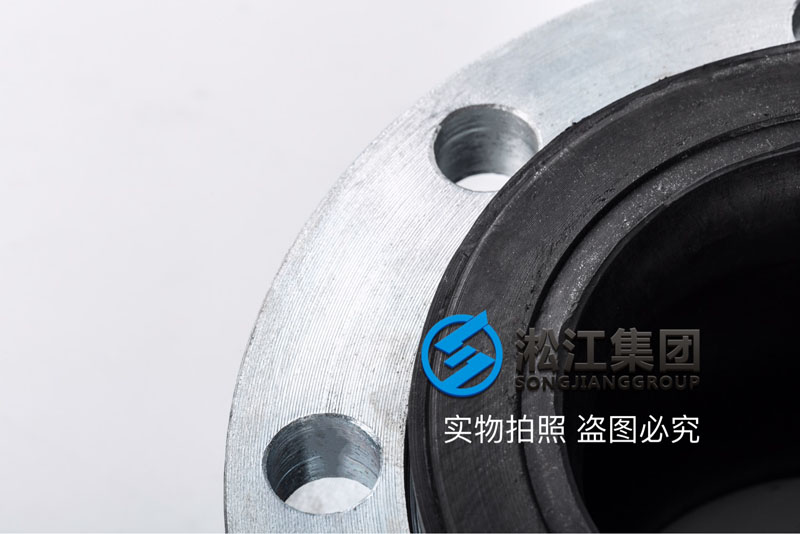

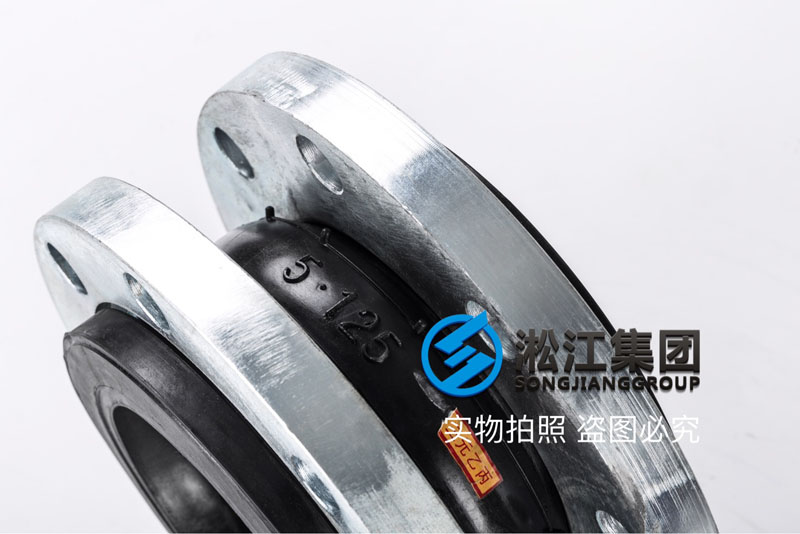

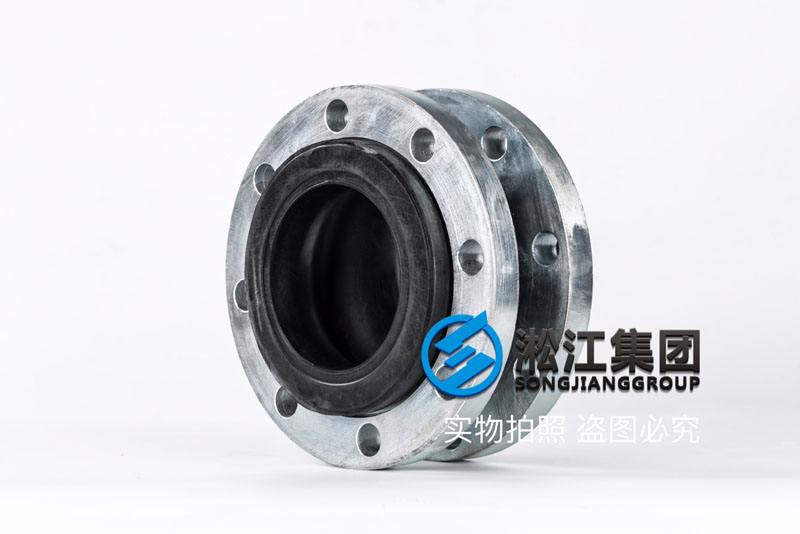

一、ANSI美標橡膠伸縮節�(shí)物拍照：
二、ANSI美標橡膠伸縮節介紹�
名稱：美�(biāo)橡膠伸縮節
型號：ANSI-150LB
口徑：DN125�5寸）
�(zhì)保：3�
�(yōu)�(diǎn)：減震、降噪、補償管道、可偏轉、可位移�
介質：海水，120度以下弱酸堿�
生產廠家：上海淞江減震器集團有限公司
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN125 (5 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數�
安裝長度�130mm�150mm�
軸向拉伸�6mm
軸向壓縮�10mm
橫向位移�12mm
偏轉角度�8°
橡膠：三元乙丙橡膠（淞江集團所有三元乙丙橡膠全部采用三�4045，含量在50%左右，有材質證明，有含量檢測�(bào)告，也有國家型式試驗中心的產品檢�(cè)�(bào)告和性能檢測�(bào)告等證書。）
Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 8 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數�
�(biāo)�(zhǔn)：ANSI-150LB
法蘭外徑�255mm
螺栓孔中心距�216mm
螺栓孔徑�22mm
螺栓孔數�
壓力�150LB（PN20�
法蘭：碳鋼（Q235�
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 255mm
Center distance of bolt hole: 216mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
三、ANSI美標橡膠伸縮節�(fā)貨現�(chǎng)�
四、ANSI美標橡膠伸縮節工廠介紹�
